ComposeDesktop实战宝可梦图鉴

---

前言

阅读本文需要一定compose基础，如果没有请移步Jetpack Compose入门详解（实时更新）

接口数据来源于pokeapi

项目源代码
如果你觉得不错，请给我一个star，THKS

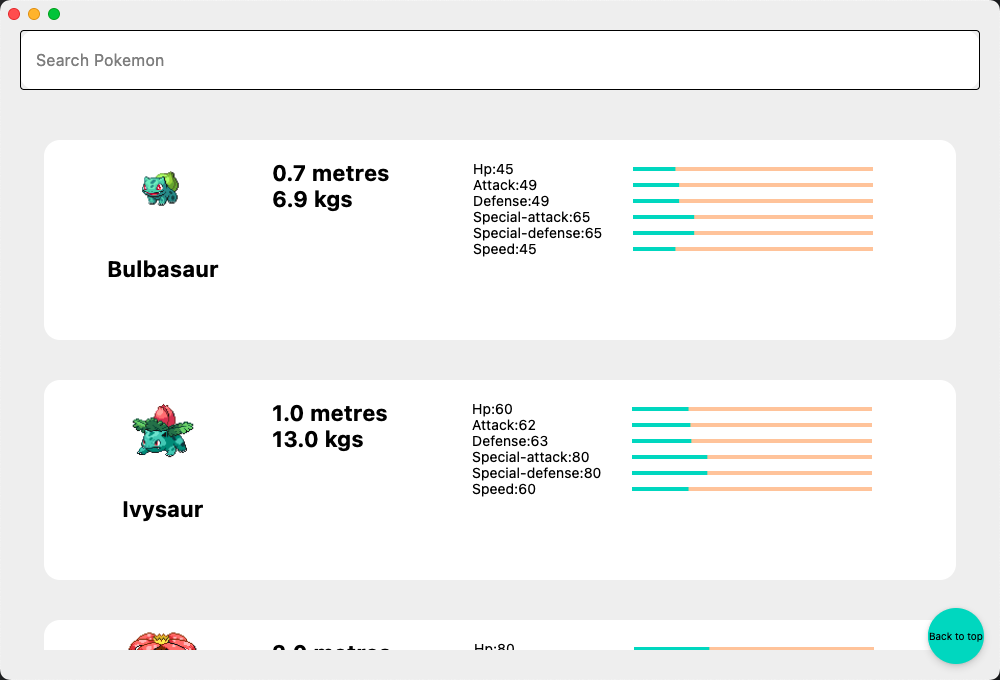

实现效果

闲话不多说，让我们来看看实现效果

可以看到我们实现了一个非常简洁的宝可梦图鉴，展示了所有世代的宝可梦，并提供了搜索，与宝可梦图鉴app的UI有了一些变化。

---

一、架构介绍

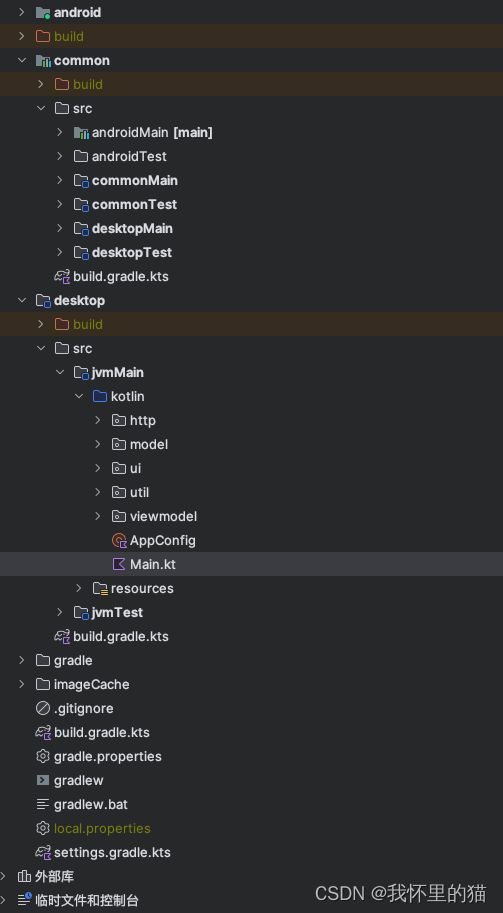

如图，展示了主要的一些文件：

本项目没有适配安卓端，iOS端和web端（如果有乐于开源的小伙伴可以联系我），因此所有核心代码都在desktop中

• http - 接口
• util -工具类
• ui -Compose组件
• viewmodels - viewmodel

二、一些的功能点的介绍

PreCompose

通过PreCompose 这个三方库，可以像写app一样写desktop，当然这里面有一些与app使用有些差别

import androidx.compose.ui.unit.DpSize
import androidx.compose.ui.window.application
import androidx.compose.ui.window.rememberWindowState
import moe.tlaster.precompose.PreComposeWindow
import ui.FullScreenView
import util.EnvUtil


fun main() = application {
    val windowState = rememberWindowState(size = DpSize(AppConfig.windowMinWidth, AppConfig.windowMinHeight))
    PreComposeWindow(
        state = windowState,
        onCloseRequest = ::exitApplication,
        undecorated = EnvUtil.isWindows(),
        title = ""
    ) {
        //window.minimumSize = Dimension(AppConfig.windowMinWidth.value.toInt(), AppConfig.windowMinHeight.value.toInt())
        window.rootPane.apply {
            rootPane.putClientProperty("apple.awt.fullWindowContent", true)
            rootPane.putClientProperty("apple.awt.transparentTitleBar", true)
            rootPane.putClientProperty("apple.awt.windowTitleVisible", false)
        }
        FullScreenView()
        //CpnWindowsPlaformDecoratedButtons(windowState)
    }
}

PreComposeWindow就是必备的，不然后续使用所有的与PreCompose相关的都会报错
例如初始化viewmodel

import moe.tlaster.precompose.ui.viewModel

val viewModel  = viewModel { PokemonListViewModel() }

加载网络图片

桌面端加载网络图也没有安卓的原生库使用，这里使用了compose-desktop-imageloader

package ui.common

import androidx.compose.foundation.Image
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.layout.ContentScale
import androidx.compose.ui.res.painterResource
import org.succlz123.lib.imageloader.ImageAsyncImageFile
import org.succlz123.lib.imageloader.ImageAsyncImageUrl
import org.succlz123.lib.imageloader.ImageRes
import org.succlz123.lib.imageloader.core.ImageCallback


@Composable
fun AsyncImage(
    modifier: Modifier,
    url: String?,
    placeHolderUrl: String? = "image/ic_pokmon.jpeg",
    errorUrl: String? = "image/ic_pokmon.jpeg",
    contentScale: ContentScale = ContentScale.Crop
) {
    val imgUrl = url ?: "image/ic_pokmon.jpeg"
    if (imgUrl.startsWith("http")) {
        ImageAsyncImageUrl(url = imgUrl, imageCallback = ImageCallback(placeHolderView = {
            placeHolderUrl?.let {
                Image(
                    painter = painterResource(placeHolderUrl),
                    contentDescription = imgUrl,
                    modifier = modifier,
                    contentScale = contentScale
                )
            }
        }, errorView = {
            errorUrl?.let {
                Image(
                    painter = painterResource(errorUrl),
                    contentDescription = imgUrl,
                    modifier = modifier,
                    contentScale = contentScale
                )
            }
        }) {
            Image(
                painter = it, contentDescription = imgUrl, modifier = modifier, contentScale = contentScale
            )
        })
    } else if (imgUrl.startsWith("/") || imgUrl.contains(":\\")) {
        ImageAsyncImageFile(filePath = imgUrl, imageCallback = ImageCallback(placeHolderView = {
            placeHolderUrl?.let {
                Image(
                    painter = painterResource(placeHolderUrl),
                    contentDescription = imgUrl,
                    modifier = modifier,
                    contentScale = contentScale
                )
            }
        }, errorView = {
            errorUrl?.let {
                Image(
                    painter = painterResource(errorUrl),
                    contentDescription = imgUrl,
                    modifier = modifier,
                    contentScale = contentScale
                )
            }
        }) {
            Image(
                painter = it, contentDescription = imgUrl, modifier = modifier, contentScale = contentScale
            )
        })
    } else {
        ImageRes(resName = imgUrl, imageCallback = ImageCallback(placeHolderView = {
            placeHolderUrl?.let {
                Image(
                    painter = painterResource(placeHolderUrl),
                    contentDescription = imgUrl,
                    modifier = modifier,
                    contentScale = contentScale
                )
            }
        }, errorView = {
            errorUrl?.let {
                Image(
                    painter = painterResource(errorUrl),
                    contentDescription = imgUrl,
                    modifier = modifier,
                    contentScale = contentScale
                )
            }
        }) {
            Image(
                painter = it, contentDescription = imgUrl, modifier = modifier, contentScale = contentScale
            )
        })
    }
}

致谢

项目中大部分技术栈都参考自NCMusicDesktop ，感谢大佬
